Two-pole socket diameter 2, 16A 250V, white remise

Two-pole socket diameter 2, 16A 250V, white reference 739140.

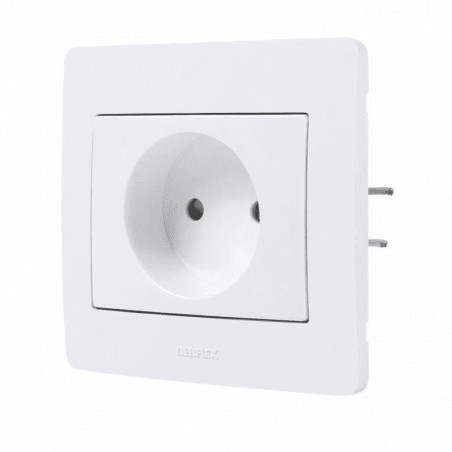

DIAM2 bipolar socket, from the DEBFLEX brand, is a mechanism that allows the supply of electrical equipment in a room. It is used to power household electrical equipment such as an inverter, computer, refrigerator, vacuum cleaner or fan. This mechanism has a bipolar well that can carry a current of 16 A, with a voltage of 250 V. This socket is able to supply any device with a power up to 3600 W. It is to be mounted directly in a single-user flush-mounted box. Its connection is done in a simple and fast way thanks to its automatic terminals.

Product advantages :

• Automatic terminal blocks
• Can be fixed with screws

General characteristics:

• Brand : DEBFLEX
• Range : DIAM2
• Reference : DEB739140
• Dimensions: 85 x 82 x 42 mm
• Description of the poles : 2 P
• Weight : 57,5 g

Product features:

• Rated current: 16 A
• Nominal voltage: 250 V
• Frequency: 50 Hz
• Rated power: 3600 W
• Waterproofing level: IP20
• Shock resistance: IK02
• Color: white
• Finish: matte
• Material: ABS/ABS/PC
• Operating temperature : -5°C to +50°C
• Storage temperature: -5°C to +50°C
