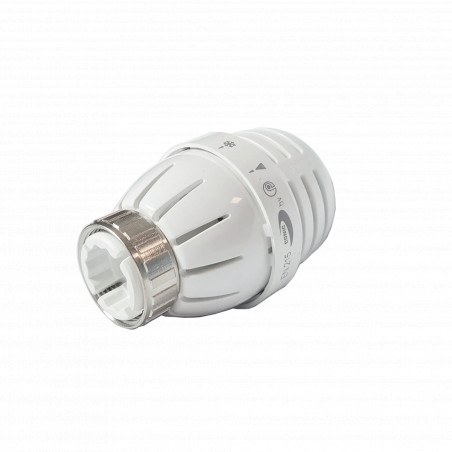

Thermostatic head with bulb for radiator CONIC PETTINAROLI reference 106CN
Thermostatic head with wax sensor and temperature lock.
For all Pettinaroli thermostatic valves (M28 x 1.5).
Complies with the EN 215 standard.
The thermostatic head can be mounted on any Pettinaroli thermostatic valve.
Material: ABS outer shell
Thermostatic sensor: Wax
Spring: AISI 302 stainless steel
Nut: CW614N (EN 12164) CuZn39Pb3
Interior components: POM
Inner locking ring: PP
Max. differential pressure: 0.8 bar
Differential pressure influence: 0.25K
Wax hysteresis : 0.8K
Fluid temp. influence: 1.4K
Response time: 30 minutes
Nominal flow rate: 170 Kg/h
| Length (cm): | 1 |
|---|---|
| Width (cm): | 15.6 |
| Main color : | White |
| Weight (kg) : | 0.121 |
| Packaging: | 1 |
| Main materials : | Polypropylene Wax |
| Warranty: | 2 years |
| Origin: | made in europe |
| EAN13 | 8016603189228 |
