STYX gas accumulator with pilot light, 155 liters, SGA X 160 FR STYX reference 3211225
STYX gas accumulator with pilot – 155 liters – SGA X 160 FR, new version.
Replaces TES X 160 gas water heater part no. 3211171.
The SGA X accumulator adapts to all installation needs and constraints (floor-to-chimney).
Control and safety system with thermocouple and thermostatic valve.
Enamel-protected steel bowl with magnesium anode.
Low-Nox burner.
Piezoelectric ignition. Electricity-free operation.
External temperature control.
Eco setting at 60°C.
SPOTT system.
Supplied in G20 natural gas with butane-propane pouch.
Features
ErP class ECS : B.
Declared filling profile : L.
DHW storage capacity (liters) : 155.
Balloon type : floor-to-chimney.
Maximum cylinder operating pressure (bar) : 7.
Gas category : G20, G31.
Connection type : B11bs.
Rated power (kW) : 8.
Output power (kW) : 8.
Heating time at ΔT=45°C (min) : 62.
Continuous flow at ΔT=30°C (liters/h) : 204.
Quantity of hot water at ΔT=40°C (liters) : 198.
Min/max operating temperature (°C) : 40 / 70.
Maximum sanitary supply pressure (bar) : 7.
Cooling constant (Wh/l.k.24h) : 1.03.
Heat loss Ua (W/K) : 6.70.
Supply voltage (V) : 230.

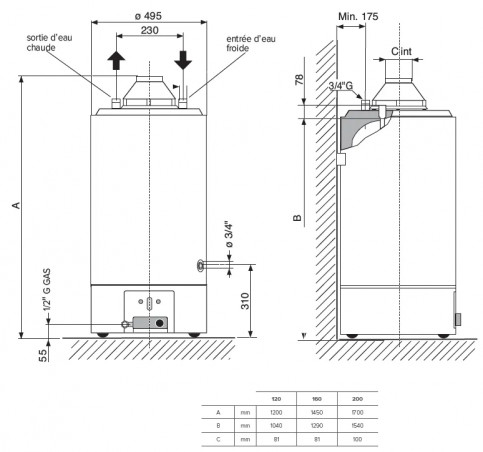

Dimensions (W x D x H mm) : 495x520x1450.
Net weight (Kg) : 54.
Reference : 3211225.
Previous reference : 3211171.
Please note that this product is not compatible with gas installations in Germany.
| Main color : | White |
|---|---|
| Weight (kg) : | 54 |
| Packaging: | 1 |
| Main materials : | Steel |
| Power (W) : | 8000 |
| Warranty: | 2 years |
| Origin: | made in europe |
| Battery included : | No |
| EAN13 | 3669008616957 |
