Straight thermostatic valve 15×21 (1/2″) PETTINAROLI reference 761P1/2.
Straight thermostatic valve for thermostatic heads or thermoelectric motors.

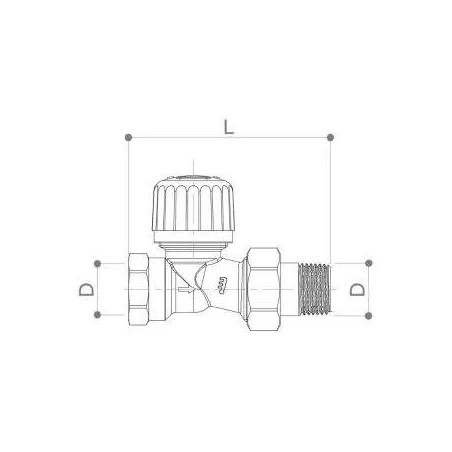

Thread diameter: 15×21 (1/2″).
Length : 81 mm.
Tube connection: female thread.
Radiator connection: socket with coating.
Cable gland and O-ring can be changed without emptying the system.
Motor connection: M28 x 1.5 mm.
Pressure limit: 10 bar.
Max. differential pressure: 0.8 bar.
Recommended temperatures: 5°C – 110°C.
Nickel-plated.
O-Rings: EPDM-X.
ABS cap.
Max glycol : 30%.
| Weight (kg) : | 0.248 |
|---|---|
| Packaging: | 1 |
| Threads : | 1/2″ (15×21) |
| Main materials : | ABS Nickel |
| Warranty: | 2 years |
| Origin: | made in europe |
| EAN13 | 3661792446529 |
