ONDEA LC12-4 HFPB hydrosmart low NOX (but/pro gas) suction bath heater, 12 liters 20.7kW stock limité

ONDEA LC12-4 HFPB low NOX (Gas but/pro) hydrosmart cupping bath heater, 12 liters 20.7kW ELM LEBLANC reference 7736505032.

General specifications

• Model: Ondéa HYDROSMART BAS NOX LC 12-4 HFPB

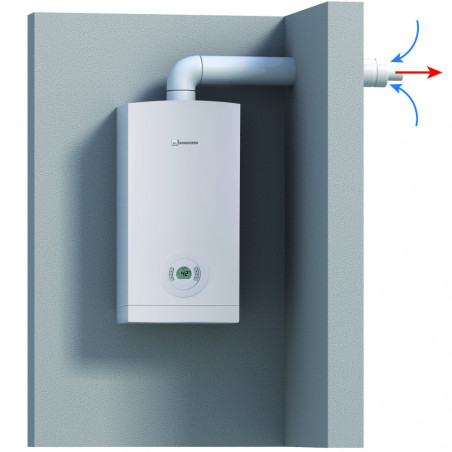

• Type: Wall-mounted bath heater with « double flame » burner
• Gas: Butane/Propane
• EAN Code: 4057749844156
• Dimensions (W x D x H): 335 x 180 x 575 mm
• Weight: 13 kg
• Protection: IPX4D

Innovative technology

• Double flame » burner: NOx emissions reduced to 26 mg/kWh (ErP compliant).
• Energy efficiency:

90% at 100% load.

95% at 30% load.

• Power range: 4.3 to 20.7 kW.
• Hot water flow rate:

Maximum: 12 l/min at ΔT 25 °C.

Minimum flow rate: 2.8 l/min.

• Water pressure: 0.1 to 12 bar.

Key benefits

1. Reduced pollutant emissions:

Low CO2 and NOx emissions thanks to optimized combustion.

NOx: just 29 mg/kWh (below regulatory requirements of 56 mg/kWh).

1. Solar compatibility:

Can be connected to a solar system for energy optimization.

1. Modern, functional design:

Digital touch control interface with LED backlight.

Elegant shape, blending harmoniously into any décor.

1. Easy installation:

Identical hydraulic and flue connections to simplify replacement.

Gas change kits for switching between natural and propane gas.

1. Robustness and comfort:

Fast ignition and optimum performance, even at low pressure.

Technical Data

• Gas type: Butane/Propane
• NOx at 0% O₂: 29 mg/kWh
• Evacuation type: Ventouse
• Weight: 13 kg
• Compact dimensions: 335 x 180 x 575 mm

Ideal for long-lasting comfort

The Ondéa HYDROSMART BAS NOX LC12-4 HFPB bath heater offers an ecological, economical and ergonomic solution for domestic use. Its design to reduce the environmental footprint and simplified installation make it the perfect choice for optimizing hot water production.
