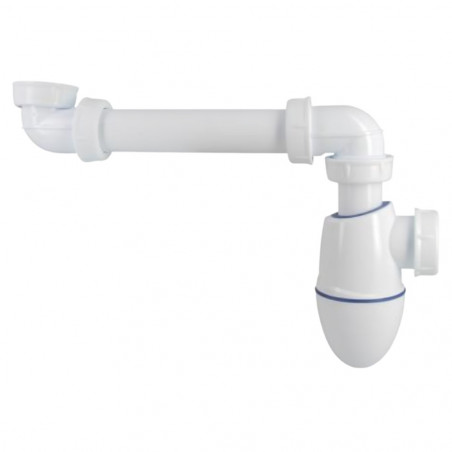

Easyphon washbasin siphon with rear spout, BMT02 NICOLL part no. 0202135
Perfect seal thanks to bi-material technology.
Standardized 50mm water clearance.
Optimized drain flow.
Double sealing of push-fit and compression connections.
Exceptional durability of TPE seals, so they never need replacing.
No more lost seals or seals to replace.
The first designer plastic siphon.
Guaranteed successful installation thanks to bi-material seals.
Easy, time-saving installation. Ultra-fast, long-lasting installation.
Cleverly integrated into the body without the need for nuts, the dip tube takes up very little space.
Superior height adjustment.
No need to re-intervene on site after installation.
Integrated seals.
Outlet connection diameter: 32 mm.
Inlet connection diameter: G1″1/4 (33×42).
Nicoll technology: Bi-injection.
Clearance: 50 mm.
Range : NF certified and patented.
Base dimensions: 94 mm.
Height adjustment: up to 100mm.
Adjustable overall height: from 189 to 248 mm.
Depth: 250 mm max.
Flow rate: 39 l/min under a 120 mm water load.
Flow temperature: 90°C.
Unscrewable cap.
Polypropylene body.
Elastomer seals.
| Length (cm): | 25 |
|---|---|
| Width (cm): | 5 |
| Height (cm): | 24.8 |
| Weight (kg) : | 0.2 |
| Packaging: | 1 |
| Nominal diameter (DN in mm) : | 32 |
| Main materials : | Plastic |
| Warranty: | 2 years |
| Origin: | made in france |
| EAN13 | 3389700112211 |
